Basic Info.
Model NO.
zjt panel-1001
Fire Rating
4
Customized
Non-Customized
Facing Panel
Fiber Cement Board/Calcium Silicate Board
Core Material
Cement, EPS and Sand, Fly Ash
Certificate
TUV, SGS
Light Weight
1 Person Can Take up Two Pieces
Application
Wall/Roof/Floor
Installation Speed
15sqm/Person/Day
Fireproof Limit
>3hours
Anti-Pressure
>3.5MPa
Hanging Force
1000n
Anti-Bending Damage
>3.5MPa
Bulk Density
550-650 Kg/M*2
Softening Coefficient
>0.8
Sound Insulation
42dB
Insulation Height
>10m
Moisture Rate
<10%
Transport Package
Pallet+Pearl Wool+Corner Paper+Belt+Plastic Film
Specification
60/75/90/100/120/150mm
Trademark
ZJT
Origin
Fujian, China
HS Code
6810999000
Production Capacity
10000 Sqm Per Month
Packaging & Delivery
Package Size
15.00cm * 20.00cm * 20.00cm
Package Gross Weight
2.000kg

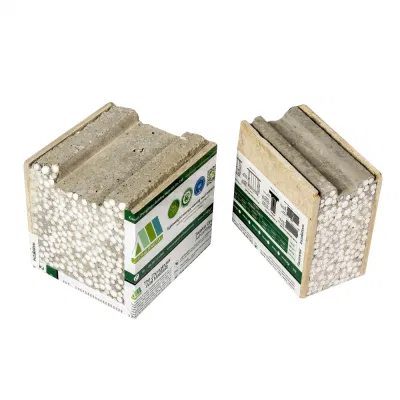

Product Description
Product Information
This is a new building material.We continue to innovate and optimize products. Promote products to China and even the whole planet. The main markets are South America, Central Asia, Southeast Asia, Australia and so on. Cooperation has been reached with companies from dozens of countries.
Product raw materials: no asbestos, will not affect your health. The main raw material is fiber cement board/calcium silicate board.

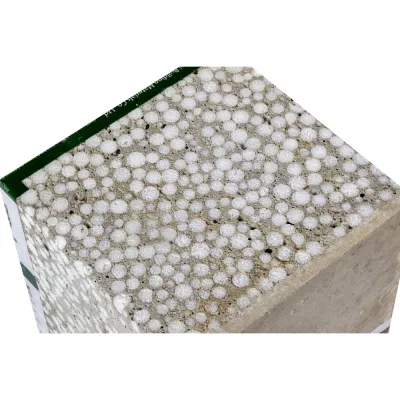

Interior filling materials are EPS ,cement , fly ash ,sand and additive
Product Advantages
Product Size
Thickness: 60/75/90/100/120/150mm
Length: 2270/2440mm
Width: 610mm
*The sandwich panel size can be customized accroding to the needs of users' requirements
Technical Index
| Item | Testing Indexes | |||||
| Thinkness[mm] | 60 | 75 | 90 | 120 | 150 | 180 |
| Anti-impact Capacity/Items [standard sandbags/times] | ≥5 | ≥5 | ≥5 | ≥5 | ≥5 | ≥5 |
| Anti-bending Damage Load [times over deadweight] | ≥3.0 | ≥3.0 | ≥3.0 | ≥5.0 | ≥5.0 | ≥7.0 |
| Compressive Stregth [Mpa] | ≥3.5 | ≥3.5 | ≥3.5 | ≥3.5 | ≥3.5 | ≥3.5 |
| Softening Coefficient | ≥0.8 | ≥0.8 | ≥0.8 | ≥0.8 | ≥0.8 | ≥0.8 |
| Surface Density [kg/m2] | ≤70 | ≤70 | ≤90 | ≤110 | ≤110 | ≤130 |
| Moisture Rate [%] | ≤10 | ≤10 | ≤10 | ≤8 | ≤8 | ≤8 |
| Drying Shrinkage Value [mm/m] | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
| Hang Force [N] | ≥1000 | ≥1000 | ≥1000 | ≥1000 | ≥1000 | ≥1000 |
| Sound Insulation Capacity In The Air [dB] | ≥35 | ≥35 | ≥40 | ≥45 | ≥50 | ≥55 |
| Fire Endurance [H] | ≥1.5 | ≥1.5 | ≥2.5 | ≥3.0 | ≥4.5 | ≥6.5 |
| Heat Transfer Coefficient [W/m2.k] | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| Inner Radiation Index | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| Outer Radiation Index | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |

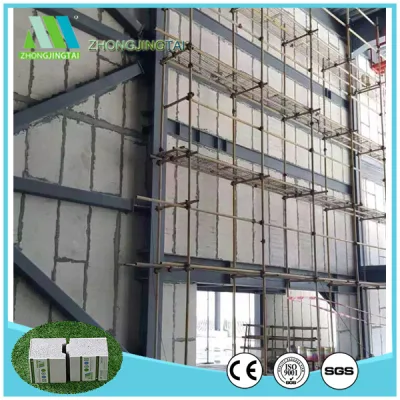

Product Application
widely used:
office,residential building,school,hospital,hotel,public construction,entertainment place.
wall/exterior wall/interior wall/super high wall/abnormity wall/roof/floor/prefab building/
pipe/fire well/equipment partiton
1).Interior partition (60/75/90mm is your best choice)
2).Exterior Wall (100/120/150mm for your reference)
3).Floor and roof
4).prefabricated houses
5).Modern high-rise Building
6).Schools, Hotels, office
7).Indoor space of ecological residences
8).All kinds of houses and structures

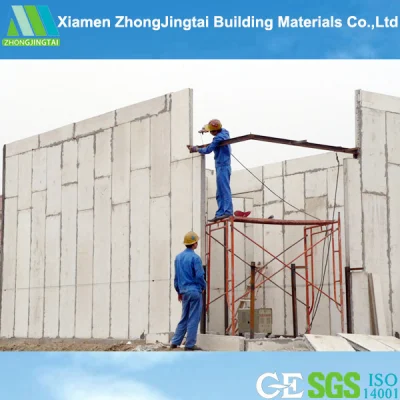

Installation Process
Step 1: Alignment
Step 2:Sawing wall panel
Step 3:Plastering the cement mortar
Step 4:Fixing wall panels
Step 5:Calibrating
Step 2:Sawing wall panel
Step 3:Plastering the cement mortar
Step 4:Fixing wall panels
Step 5:Calibrating
Step 6:Adjustments
Step 7:Filling joints
Step 8:Plastering the cement mortar
Step 9:Insterting the wires
Step10:Installing the windows and doors
Step 7:Filling joints
Step 8:Plastering the cement mortar
Step 9:Insterting the wires
Step10:Installing the windows and doors
Notice: Adjustment have three steps. The first is reinforce on bottom . The second is reinforce on top . The third is reinforce on the left and right .
Certification

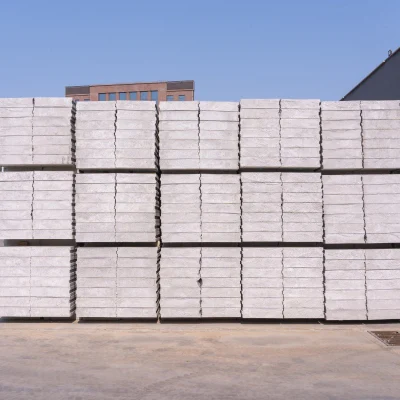

Packing & Delivery
1).Held by wooden Pallet or without Pallet;
2).Bonded with plastic belts;
3).Fasten around the corners;
Project
Trade Terms
1).Payment: T/T or L/C at sight;
2).Lead time: 20-25 Working days;
3).Shipping freight are quoted under your requests;
4).Shipping port: Xiamen port, Mainland China;
5).Discount: based on the order quantity;
Company infomation
In the trend of low-carbon and energy-saving in domestic, ZJT is on a mission environmental protection, and actively promoting the development and popularization of green building materials. The composition of the materials of ZJT energy-saving wall panel strictly implements national GB6566-2001Building Materials Radionuclide Limited standard, which belong to the main of the radioactive building materials and a kind of decoration materials, 100% do not contain harmful substances in humans, and in high temperature combustion state, the release of excessive part also can be operated in an efficient range so it has no direct threat to human. At the same time, the construction of the product itself almost do not produce construction waste, in the demolition of buildings the product has the reuse rate of as high as 72%-93%, so these features make it surely become one of the most environmental protection administration of green environmental protection building materials.
