Basic Info.
Model NO.
S7-603
Opening Direction
Outward
Glass
Without Glass
Color
Customized
Special Function
Security
Surface Finishing
Finished
Handle Position
Right
Position
Interior
Certificate
Wh, UL 10c,
Stc Rating
Soundproof Interior Door Rating up to Stc43dB
Fire Rating
Ranging From 20min to 90min
Transport Package
PE Film Inside, Wood Crate Pallet Outside
Specification
Customized
Trademark
Forest Bright
Origin
China
HS Code
4418200090
Production Capacity
500/Month
Product Description

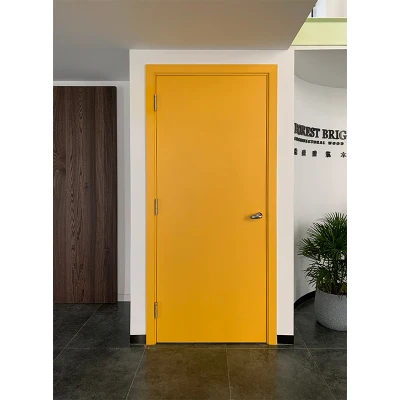

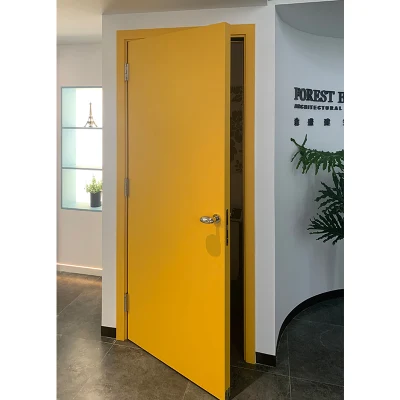

Acoustic interior flush wood door sound proofing, fire rated hotel room entry door
Providing a safe and protected environment for occupants is every architectural building owner's goal.
Fire rated STC wood door & frame assamblies are available up to 45 minutes
Forest Bright's fire-rated doors passed 20 minutes, 45 minutes, 60 minutes and 90 minutes type A positive pressure test, meet USA NFPA 252 (2012); UBC 7-2; UL10B, UL10C standard.
Part 1: Door specifications
Part 2: STC ratings available from STC 32 through STC 39
Part 3: Hardware system components
Part 4: Certificate and Lable
WH Certificate for our door slab and door frame.
From fire-rated assemblies that meet life safety codes and radiation protection to privacy options and impact-resistant edges, our doors help meet the demands of specialty type applications in architectural and commercial buildings, such as hospitals, schools, hospitality and commercial buildings.
Providing a safe and protected environment for occupants is every architectural building owner's goal.
Fire rated STC wood door & frame assamblies are available up to 45 minutes
Forest Bright's fire-rated doors passed 20 minutes, 45 minutes, 60 minutes and 90 minutes type A positive pressure test, meet USA NFPA 252 (2012); UBC 7-2; UL10B, UL10C standard.
Part 1: Door specifications
| Door Leaf | |||
| Size | 84" × 36" x 1 3/4", other sizes can be customized | ||
| Construction | 5-ply construction, meets or exceeds industry standards of WDMA I.S.1; | ||
| Core | Acoustic core | ||
| Surface | Paint grade | ||
| Door Jamb | |||
| Design | Double rabbet or single rabbet as standard, customized designs available | ||
| Size | 4 7/8" | ||
| Construction | 3-Ply or solid wood | ||
| Surface | Paint grade | ||
| Door Casing | |||
| Design | Flat as standard, customized design available | ||
| Size | Matching customer's requirement | ||
| Construction | 3-ply or solid wood | ||
| Surface | Paint grade | ||
| Options | |||
| Factory machining | Prep for door hardware | ||
| Factory finish | Primed finish or prefinish as standard, custom color matching | ||
| Hardware system components | Hinge, lock, perimeter seal, drop seal | ||
 STC rating | STC 32 as standard, ranging up to & including STC 43db | ||
 Fire rating | Ranging from 20min to 90min | ||
Part 2: STC ratings available from STC 32 through STC 39
| STC Rating | Speech Hard Through The Door |
| 25 | Normal speech can be heard quite easily |
| 30 | Loud speech can be understood, normal speech heard but not understood |
| 35 | Loud speech audible but not understandable |
| 41 | Beginning of privacy, loud speech audible as a murmer |
| 45 | Loud speech bearly audible |
| 50 | Very loud sounds such as musical instruments faintly heard |
Part 3: Hardware system components
| Hardware Items | Description |
| Hinge | Ball bearing flat hinge stainless steel material |

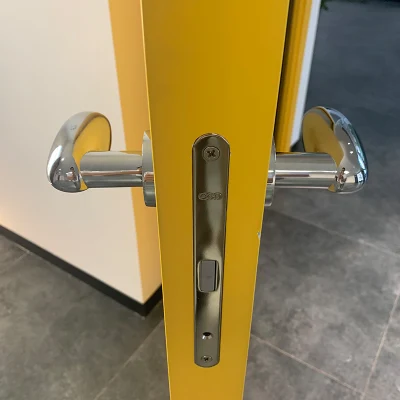

| Lock | Lever lock |

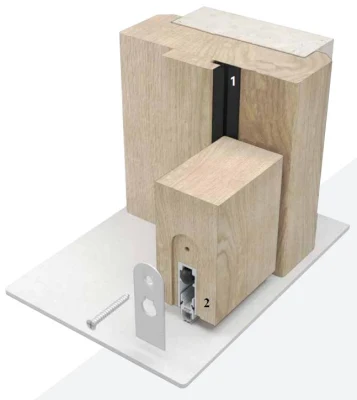

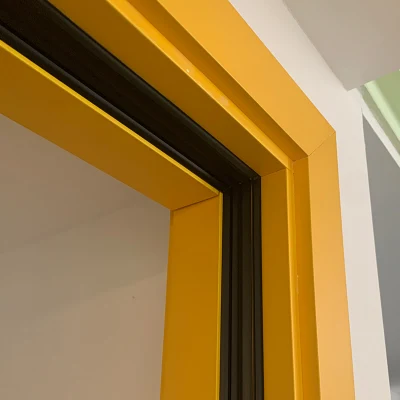

| Perimeter seal | Installing on door top side, hinge side and strick plate side |
| Drop seal | Automatic door bottom seal installing on door bottom |
Part 4: Certificate and Lable
WH Certificate for our door slab and door frame.
From fire-rated assemblies that meet life safety codes and radiation protection to privacy options and impact-resistant edges, our doors help meet the demands of specialty type applications in architectural and commercial buildings, such as hospitals, schools, hospitality and commercial buildings.
