Product Description

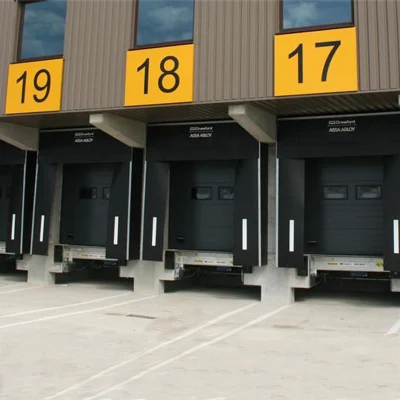

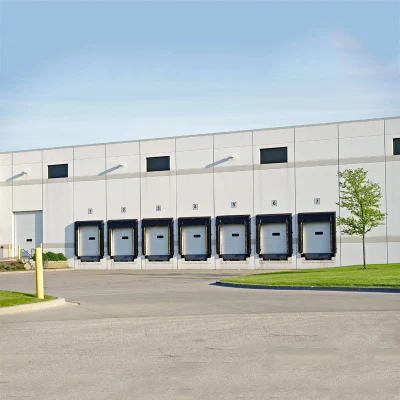

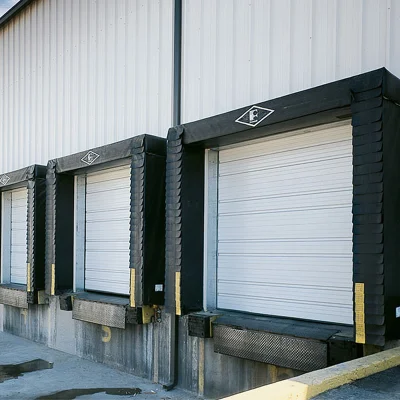

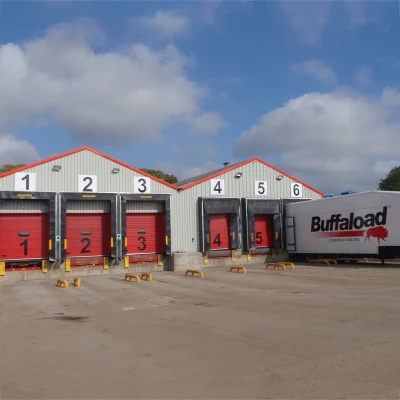

Especially suitable for the buildings with narrow side walls.it is commonnly used as the entry access door
for workshop,warehouse and logistics center.
1. Industrial door lifting types
2. Industrial door panel and hardware details
Panel Special design, strong and durable
Insulated door panels are constructed from galvanized steel sheets bonded together with CFC free polyurethane foam with integral
thermal breaks to provide a U value of 0.40w/m2c.
The thickness is 40/50mm,which make the door panel has excellent mechanical properties, the size is stable, even under low temperature
the panels' strength will not change.
| structure | Pinch resistant | Non pinch resistant |
| height | 435mm 485mm 535mm | 530mm 610mm |
| panel's thickness | 40mm | 50mm |
| Thickness of the steel | 0.326-0.5mm | |
| Density of the PU core | 40Kg/ m3 | |
| material | external/internal skins | PPGI steel made of hot-dipped galvanized steel |
| insulation | Polyurethane foam (Free of Freon) | |
| Surface textures | front side | Wood rain |
| back side | orange peel | |
| Patterns | front side | stripe, H-line,micro-wave |
| back side | stripe | |
3. Full set of hardware with safety device
The well dsigned and selected hardware system is made according to the new standard EN13241 which will offer the most safety to
our customer.
4. Optional safety device
Photo beam protector
One pair of photo beam protector will installed at both sides of the door, which will emit an invisible beam of light across the opening
area ,if the bean is interrupted by anything ,the protector will make the door stop to closing and reverse back to its opening position.
Air bag bottom seal
On the bottom of the door there if the door touches something will be an air bag to make the door reveres when it is closing.
5. Industrial door motor
Industrial lifting door motors from Everbright, provide an integrated door system that comes with our guarantee for reliable performance
when you need it most - every day. Built with convenience in mind, our automatic door operators also make it safer and easier to perform
daily job duties so you can improve efficiency and close the door on your competition.
| E-KG50 | E-KG60 | E-KG50S | E-KG120 | E-DC100 | |
| Input voltage | 220V/50Hz | 220V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Rated power | 300W | 500W | 400W | 700W | 650W |
| Torque | 30N.m | 60N.m | 50N.m | 120N.m | 100N.m |
| Max.lifting SQM | 18 SQM | 30 SQM | 25 SQM | 45 SQM | 35 SQM |
| Power | AC | AC | AC | AC | DC |
6. Packing and shipping
The industrial door panel always be protected by the 5mm carton box and wrapping film to ensure a full protection of it.
Loding container will be done by our experienced workers who have the ability to make full use of the container and gurantee the security
of the door. there ere are about 65 single door (2500*2140) in one 20ft container.For LCL order we could send it to any china sea port , the
door will be protected by polywood box.
7. Company
Everbright specialize in the Doors &Windows industry which is managed by an experienced team in production and trading.
From Europe to Asia , from America to Australia ,all of the products from Everbright enjoy high reputation for its quality, reasonable
price and professional service.
8. FAQ
1. What is you policy of the sample?
Sample from Everbright is for free, but you need to pay for the freight.
Freight will be deducted from the payment of the official order.
2.What is your delivery time?
For regular order and standard color/Size , delivery time is 15 days after we receive the prepayment.
3.What is payment term?
We accept T/T ,L/C at sight , west union and Paypal.
4.what is your warrenty time?
For door panel and hardware , we offer 5 years warrenty time.
For motors from us , we guarantee for 2 years.
5.do you offer OEM service?
Yes we are.
