Basic Info.
Model NO.
YO-Sectional
Type
Revolving
Open Style
Revolving
Opening Type
Induced
Special Function
Thermal Insulated
Color
Various Color
Certification
ISO9001, CE
Position
Industrial
Surface Finishing
Finished
Application
Cold Room, Warehouse, Workshop
Door Panel Thickness
40mm
Shipment
7 Days After Deposit
Door Material
Stainless Steel
Transport Package
Export Wooden Case
Specification
Max size 8m*8m
Trademark
YUOU
Origin
China
HS Code
85308000
Production Capacity
5000pieces/Year
Packaging & Delivery
Package Size
3500.00cm * 500.00cm * 500.00cm
Package Gross Weight
300.000kg
Product Description
Description
Sectional doors are widely used in areas with high cleanliness requirements, such as factories, medicine, food, electronics, Printing, supermarkets, etc. The doors have a beautiful appearance, with features of high strength, low noise and insulation properties.
Technical data:
Structure Diagram:
Product Details:
1.Lift way:
2. Motor and controller:
3. Sandwich panel:
4. Spring Safety device:
1. Spring brake device: anti-broken
5. Falling Protection Devices:
6. Guide rail:
A. Special design three angle wheel brace secure smooth rolling of wheel
7. Seals:
EPDM sealing rubber is installed onto top, bottom and periphery,
8. Buffer and hinges:
9. Manual device(Only for manual door):
10.Bottom Wireless safety airbage:
It makes the door body lift back when touching something during closing and stops the movement during opening.
11.Optional parts:
You will receive:
Products real shot:
Sectional doors are widely used in areas with high cleanliness requirements, such as factories, medicine, food, electronics, Printing, supermarkets, etc. The doors have a beautiful appearance, with features of high strength, low noise and insulation properties.
Technical data:
| Industrial Sectional Door | |
| Max dimension | Automatic PU Foam Insulated Garage door with Pedestrian Doorwidth * height 12000mm*8000mm |
| Power supply | 220±10%V, or 380V, 50/60Hz, IP55 |
| Opening and closing speed | 20-40cm/s |
| Door panel thickness | 40mm/50mm/75mm/100mm/Back rib door |
| PU Denisity | 48±2kg/m 3 |
| Wind resistance | 28-35m/s (Class 10-12) |
| Sound insulation level | 24DB |
| Water tightness | 30Pa |
| K Value | 1.5W/M2.K |
| Thermal Conductivity | <= 0.033W/M.K |
Structure Diagram:
Product Details:
1.Lift way:
2. Motor and controller:
3. Sandwich panel:
A. Two layer 0.4mm powder coated galvanized steel plate, PU foaming density 48±2kg/m3
B. Surface printing layer: 30um
C. Total thickness: 40mm (standard)
50mm/75mm/100mm(optional)
50mm/75mm/100mm(optional)
4. Spring Safety device:
1. Spring brake device: anti-broken
2. Service life: 100 thousand opening and closing
3. Driving force: 140N
4. Choosen according to door size, weight and lifting pattern
3. Driving force: 140N
4. Choosen according to door size, weight and lifting pattern
5. Falling Protection Devices:
Door bottom is equipped with droping avoid steel cord, securing the accident dropping within 5cm.
A. Special design three angle wheel brace secure smooth rolling of wheel
B. Mute nylon wheel, noise level: <=60db
7. Seals:
EPDM sealing rubber is installed onto top, bottom and periphery,
8. Buffer and hinges:
9. Manual device(Only for manual door):
10.Bottom Wireless safety airbage:It makes the door body lift back when touching something during closing and stops the movement during opening.
11.Optional parts:

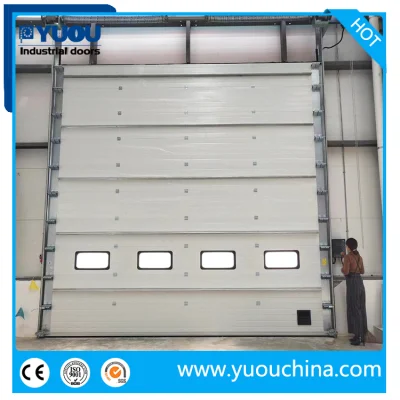

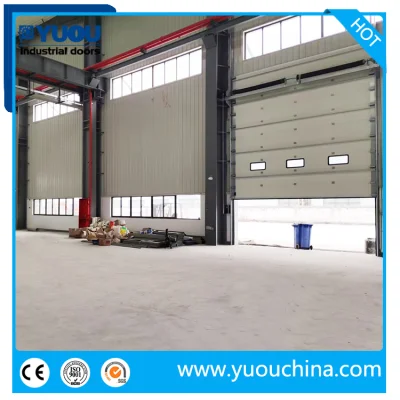

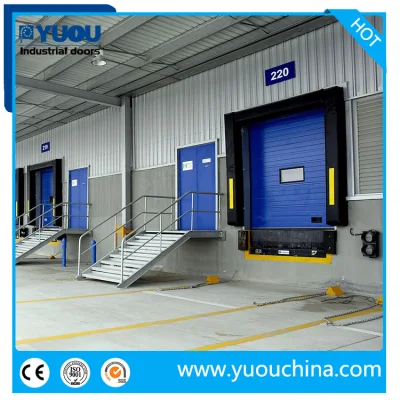

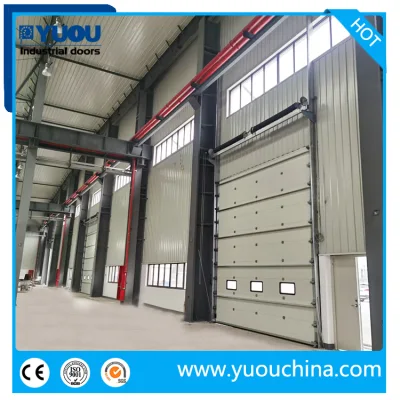

Products real shot:
