Product Description
Product Description

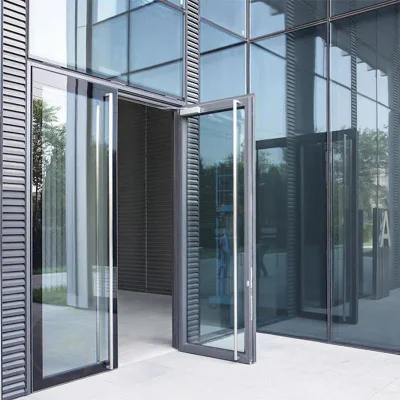

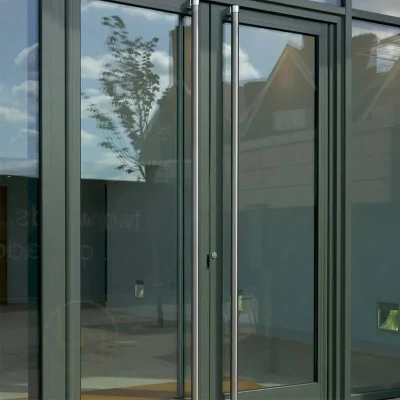

1) The pivot sash and fix of HD49 designed in right angle style, showing a simple fashion idea.
2) Adopt 6+9A+6 DGU glass, which has good sound insulation to reduce the harm of noise to the body and enable you a quiet and comfortable living environment.
3) Glass beads adopted, making it easy for glass installation.
TECHNICAL PARAMETERS
| Performance | ||||||||
| Heat Preservation Performance W(m2.k) | Sound Insulation Performance (DB) | Watertight Performance (Pa) | Airtight Performance | Wind Load Resistance (KPA) | ||||
| 3.2 level 4 | 35DB level 4 | 200PA level 2 | level 3 | 3.0KPA level 5 | ||||
| Parameters | ||||||||
| Sash Width/Height (mm) | Visible Width (mm) | Depth (mm) | Glass(Thickness) | |||||
| -Width 500-1100mm -Height 1920-2800mm -Weight 120kg | Frame Width 50mm; Sash Width 100mm. | Frame Depth 80mm Sash Depth 49mm | SGU: 5-10mm DGU: 19-24mm | |||||
POWDER COATING, ANODIZED AND WOODEN FINISH
ALUMINIUM EXTRUSION FACTORY CAPACITY
| ALUMINIUM ALLOY | EXTRUSION DIAMETERS | BILLET CASTING LINE | EXTRUSION LINE | POWDER COATING LINE | ANODIZED LINE |
| 6063/6061-T4,5,6 | 80mm-300mm | 2*casting Lines | 14*extrusion Line | 1*vertical coating line | 1*full automatic line |
| FACTORY AREA | ANNUAL OUTPUT | STAFF/R&D | |||
| 1800 | Acres | 100,00 | Tons | 650/25 | members |
BILLET CASTING WORKSHOP
DIES WORKSHOP
EXTRUSION WORKSHOP
POWDER COATING LINE
FULL-AUTOMATIC ANODIZED WORKSHOP
WHAT PRODUCTS WE OFFER
As of now we have successfully designed, manufactured and supplied globally the entire range of aluminium architectural and industrial products and hardwares and it includes the following:
•Aluminium profiles
•Sliding Doors
•Sliding Windows
•Entrance Doors
•Casement Windows
•Bi-folld door
•Unitized Curtain Walls
•Shopfront
•Sun rooms
•Partitions
•Balcony railings
•Structural Glazing
•aluminium cladding
•Aluminium formworks
WHAT SERVICE WE OFFER
Customized
Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.
Technical Support
The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.
System design
Based on the clients' and market's requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.
FAQ
Q: Are you trading company or manufacturer?
A: We are aluminium manufacturer located in QINGYUAN with more than 30 years experience. And you are warmly welcomed to visit us.
Q: How long is your delivery time?
A: Generally it is 15-20 workdays after receiving payment.
Q: Do you provide samples for free? What's the MOQ?
A: The new die samples are free for approval and inspection. The MOQ is 8-10tons
Q: What is the payment terms?
A: 30% upon order confirmation and the balance should be paid before delivery by T/T./after receiving B/L copy. /L/C at sight
