Basic Info.
Model NO.
EX200
Position
Commercial
Surface Finishing
Finished
Motor
Dunkermotoren Germany
Power Supply
220V or 110V
Length
2000mm to 6000mm
Model
Es200
Warranty
36monthes
Function
Works with Original Dorma Parts
4200mm Standard System Weight
Around 45kg
Transport Package
Carton with Film
Specification
CE
Trademark
Will
Origin
China
HS Code
8537101990
Production Capacity
2000sets Every Month
Product Description
Automatic Door Operator Sliding Door Operator with Brush Motor automatic door with Dunker Motor ES200 Commercial automatic door mechanism 2017 new version ES200 Sliding glass door automation systems ES200
Feature
1...Function 95% similar as Dorma ES200 Easy and works with original dorma ES200 Easy
2. Brush Motor or Dunker Motor 99.5W, powerful enough to bear 2X160KG gates.
3. Easy install since the Drive system has been installed before leavine the factory
4. Germany Dunkermotor, CE approved

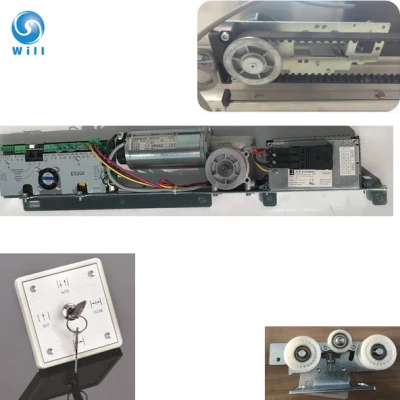

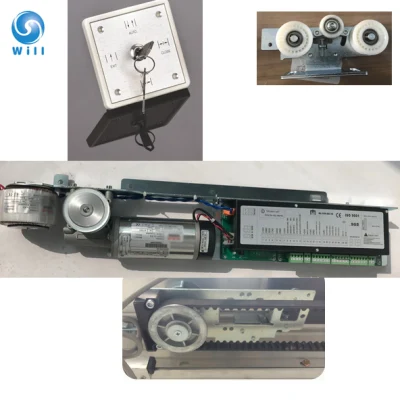

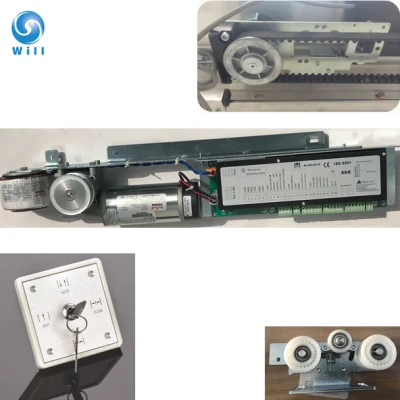

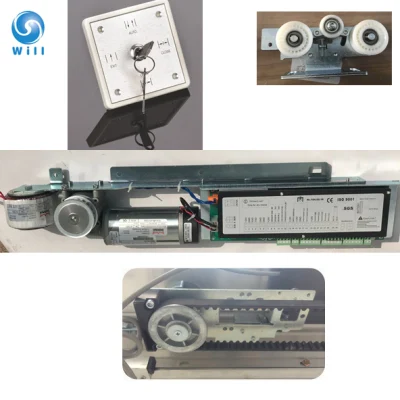

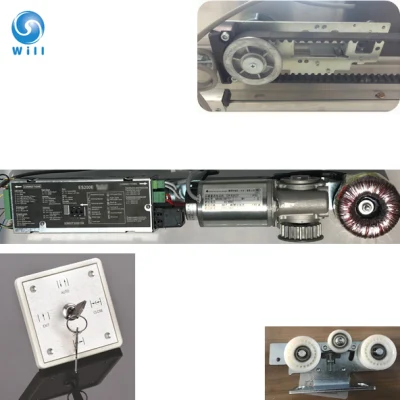

Standard Configuration
1. Minidrive Unit
2. Transformer
3. Motor
4. Decoder
5. Basic control module
6. Track
7. Carrier
8. Return Pully
9. Service cover holder
10. End stop
11. Door bracket
12. Belt connection
13. Belt tensioning device
Opetional Parts
Motion Sensor
Lock latch
Battery
Beam safety photocell
Specification
ES200 Easy
Weight of gate Single/Bi-part1X200KG/2X120KG
Width of gate Single/Bi-part900-6100MM
Master Controller32 digital microprocessor
Brush motor/Dunker motor99.5W 60VDC 2A IP50
Opening speed300-700mm/s
Closeing speed300-650mm/s
Max open strength150N
Hold Open Time/Lock0-10S/30s
Height of the rail8CM
Deepth of the rail16CM
Power SupplyAC110V-250V 50/60HZ
Temp15 C to +70 C
Power Consumptionaround 100W
Protection degree of ElectronicIP23
Function Programs
Off
Automatic
Permanent Open
Partial
Exit only
--------------------------------------------------------------------------------------------------------------------------------------------
Additional
Low noise desigh (<40db)
One million times of tests passed
Warranty: 18months
Emergency Functions
Emergency opening in case of power failure / Fail-safe
Obstacle detection with automatic return mechanism
Self monitoring light barriers
Slow speed search for obstruction
Workshop
