- Overview
- Detailed Photos
Basic Info.
Timber Type
Radiata Pine
Usage
Indoor
Burl
Without Burl
Application
Furniture Decoration, Furniture, Flooring, Wallboa
Brand Name
Aweita
Product Name
Finger Joint Board
Grade
AA
Transport Package
Standard Export Pallet Package
Specification
1220*2440mm, customized
Origin
Shandong, China
HS Code
4403203000
Production Capacity
10000 Square Meter/Square Meters Per Month
Product Description

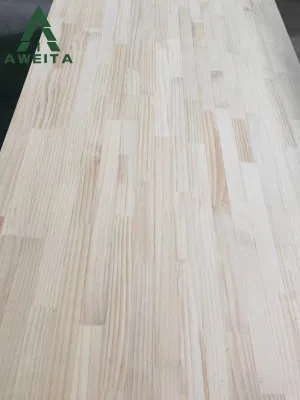

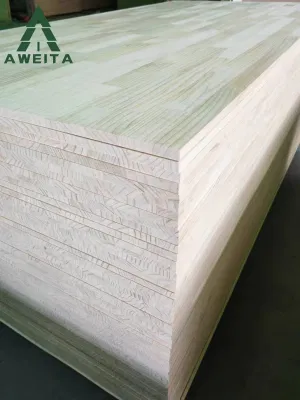

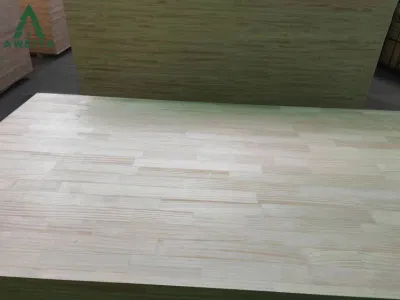

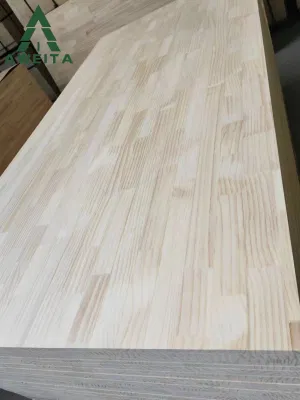

EDGE GLUED PANEL
FINGER JOINT PANEL
Finger Joint Boards can be used to make Table Tops , Bar Tops, Chair Seat, Stair Treads, Drawer fronts, Parquet Floors, Internal Doors, Domestic Joinery, Furniture Fixtures, Wall shelves & fixtures, Indoor building components.
Appearance
A/A Grade: both faces are clear, free of knots. This is reason why the strip is cut into small pieces to afterwards join them together again along the longitudinal plane: the result is a completely clean board.Names
- Scientific name: Pinus Radiata D. Don
- Common name: Radiata Pine
Physical Properties
- Grain: Straight, except for rings close to the pith
- Texture: Homogenous and fine
- Scent: Slightly sappy
- Moisture content: 15 %
- Thermal conductivity: 0,104 λ (W/mK)
- Nominal density: 480 Kg/m3
- Permeability: Retention > 240 kg/m3
- Shrinkage coefficient: Volumétrica (14,5 %); Tangencial (7,4 %); Radial (4,2 %)
- Durability: Category 3
Dimensions (measurement values are indicated in mm)
- Length: 2250 - 2200 - 2440 - 3000
- Width: 1220
- Thickness: 10 - 12 -15- 16 -17- 18 -20- 22 -24 - 30 - 40
Applications
In accordance with The Spanish Association of Standardisation, the edge glued Radiata pine panels are classified as follows:- Regarding the conditions in which it is utilized: SWP (1= dry )
- Regarding its mechanical properties: SWP 1 NS (NS= non- structural, non-structural application)
Workability
- Cutting: Easy
- Drying: Fast
- Planing: Easy
- Gluing: Easy
- Nailing and screwing: Easy
Conservation and Storage
Our experience with Radiata pine and finger-joint panels made of this raw material allows us to know the possible modifications or damage that the product might suffer in the event that a series of recommendations regarding basic conservation and storage were not taken into consideration to preserve its durability and stability.In wanting to avoid warping of the panel or edging of the strips that are at the edges we suggest the following recommendations:
- Do not subject the plank to sudden temperature and or moisture changes. Wood is sensitive to variations in the stability of the atmosphere surrounding it.
- Avoid storing the panels of wood in direct contact with floors and walls.
- Keep the original packaging, which were provided with the goods whether it be one by one or altogether, avoiding contact with the atmosphere for a prolonged period of time if the goods have not been rearranged or moved from the initial positioning - once the piece which is going to be put to use has been removed.
- Apply varnish, lacquer, paint or similar chemical treatment or equivalent that enhances the resistance of the panel/board and is not incompatible, in accordance with the fact sheet provided by the manufacturer, with the wood in itself or the adhesive used to glue.
